Migrating data from Firebird to Oracle

This guide walks you through migrating data from Firebird to Oracle in a few simple steps using ESF Database Migration Toolkit. Simplify complex migration tasks and save valuable time with our streamlined approach.

Firebird vs. Oracle:

FireBird is an open-source relational database management system (RDBMS) that offers robust features, high performance, and scalability. It provides cross-platform support, running on Windows, Linux, macOS, and various Unix platforms. With its SQL compliance, ACID transactions, and multi-generational architecture, Firebird is well-suited for both small-scale applications and enterprise-level deployments. Additionally, its lightweight footprint and minimal administration requirements make it a popular choice for embedded database solutions.
Oracle is a leading multinational computer technology corporation specializing in database management systems. Renowned for its robust and scalable database solutions, Oracle offers a comprehensive suite of products encompassing database technologies, cloud applications, and enterprise software. With a global presence and a reputation for innovation, Oracle serves diverse industries including finance, healthcare, retail, and manufacturing, empowering organizations to manage, secure, and analyze their data efficiently to drive business success.

Prerequisite:

Software Required:

DMToolkit_x64.zip (63.5 MiB)	64-bit Windows application for ESF Database Migration Toolkit 12.2.10 (2025-08-01). (md5: 8f3645cbf2d8ad50ea765986a2563ef5)
DMToolkit_win32.zip (58.8 MiB)	32-bit Windows application for ESF Database Migration Toolkit 12.2.10 (2025-08-01). (md5: a47adb3a824d2d958058d9833fddf42d)

System Supported:
- Windows 7 or higher.
- Firebird 1.5 or higher.
- Oracle 11g or higher.

Step by Step Wizard:

Configure Firebird/InterBase Connection
- In the Choose a Data Source dialog:
  - Select Firebird/InterBase from available options
- Provide authentication credentials:
  - Username: SYSDBA (default)
  - Password: masterkey (default)
- Select the database character set from dropdown
- Specify database location:
  - Click the [...] button (Browse)
  - Select your Firebird (.fdb) or InterBase (.gdb) file
- For network connections:
  - Enter server address in format: [server_name][/port][/path_to_file]
  - Examples:
    - localhost/3050:/var/db/test.fdb
    - dbserver.example.com:/data/prod.gdb
Fig. 1: Configuring Firebird/InterBase data source
Configure Oracle Destination
- In the "Choose a Destination" dialog:
  - Select "Oracle"
- Enter server details:
  - Server name: localhost (default)
  - Port: 1521 (default)
- Provide authentication credentials:
  - Username: SYSTEM (default)
  - Password
- Select logon method:
  - SID
  - Service_Name
  - TNS
- Configure database connection:
  - For SID/Service_Name: Enter value in Database field
  - For TNS: Leave Database field blank
- Schema configuration:
  - Enter schema name (default: same as username)
  - Click the Refresh button to view available schemas

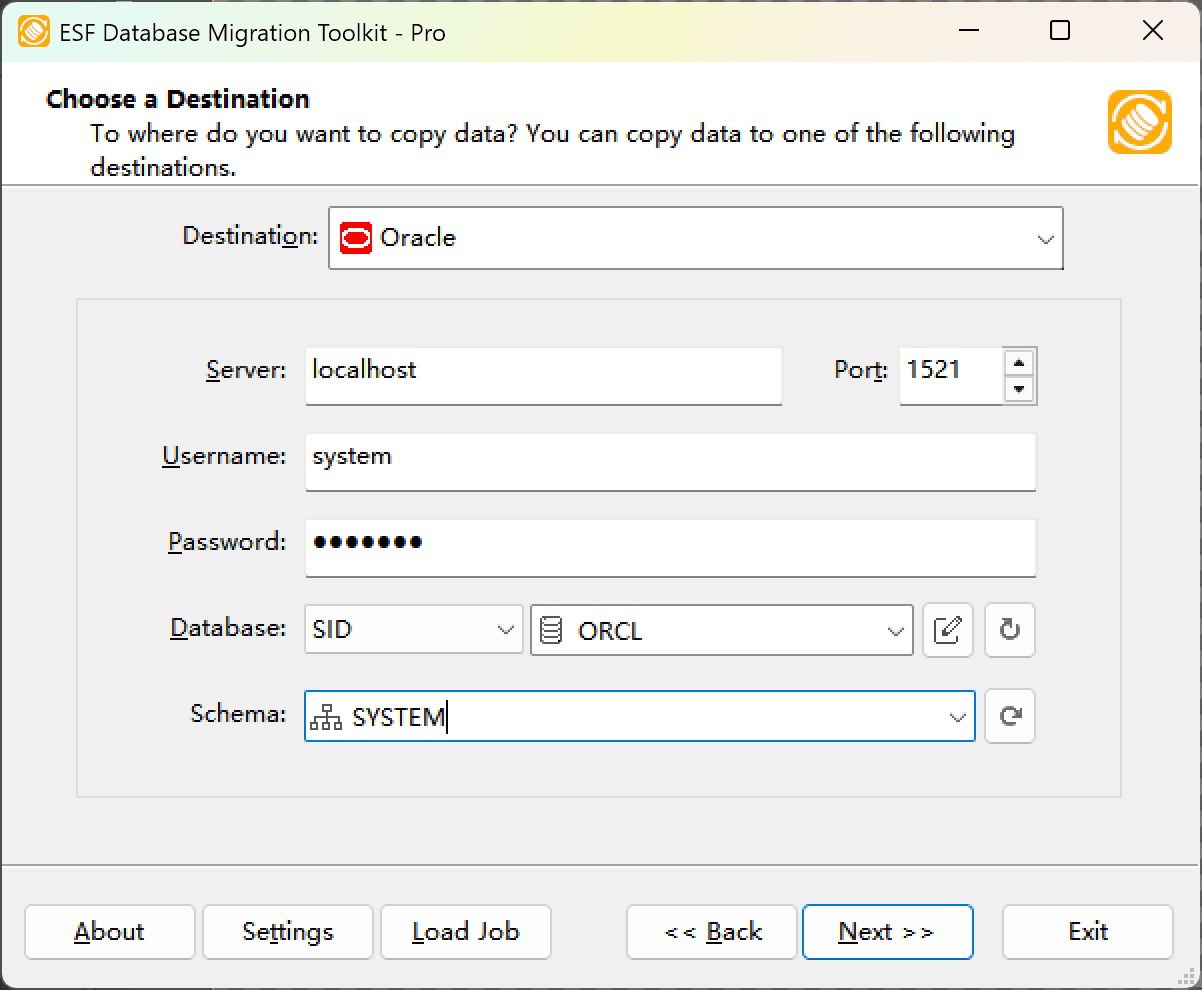

Fig. 2: Oracle destination configuration
In "Select Source Table(s) & View(s)" Dialog
- Select migration objects: Choose tables or views to include in the migration.

  Fig. 3: Select tables and views
- Modify table structure: Click the ellipsis (...) button to access table options and schema adjustments.

  Fig. 4: Do transform
- Configure field mapping: In the Field Mapping options:
  - Customize destination fields (name, data type, default value, comments)
  - Select data transfer method:
    - Overwrite Table (replace existing data)
    - Empty Data (truncate before insert)
    - Append Data (add to existing data)
    - Skip Table (exclude from transfer)
  - Apply data filters before transfer
Execution Dialog
- Start migration: Click "Submit" to initiate automated data transfer from Firebird to Oracle.

  Fig. 5: Execute migration
- Monitor progress: Click "Browse Log" for real-time migration tracking, including issue resolution details.
- Save configuration: Click "Save as job" to store settings for:
  - Quick reloads of migration jobs
  - Command-line execution (use: dmtc.exe --help for parameter options)
Finished!

After migration completes, the toolkit generates a comprehensive report for verifying migration accuracy. You can monitor progress as the automated process runs efficiently. For any questions or feedback, contact us – our team is ready to assist.
